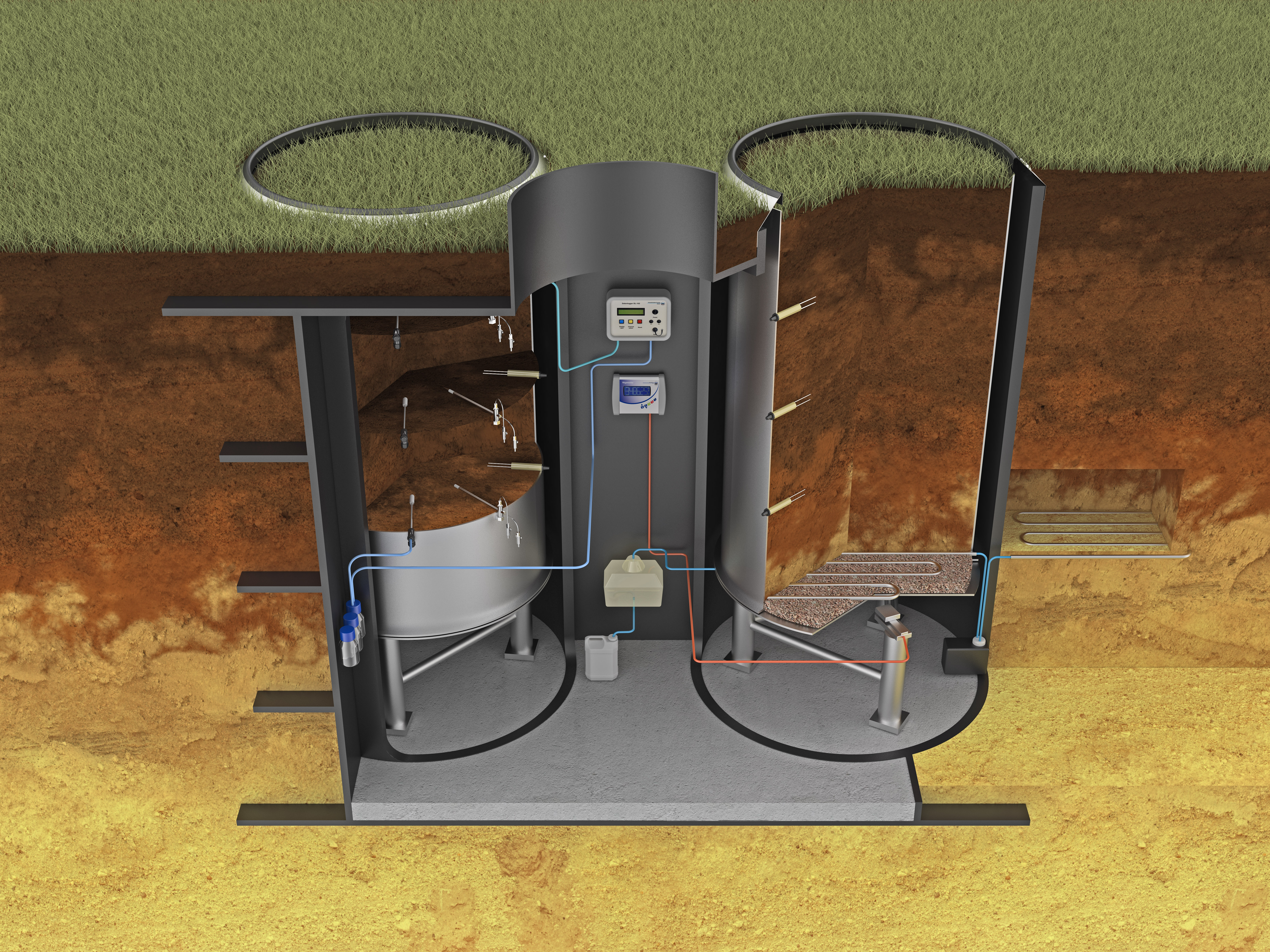

Ready-To-Go Lysimeter Systems

Compact. Precise. Versatile. Our Ready-To-Go (RTG) Lysimeters offer a smaller, cost-effective alternative to large PE-HD lysimeter stations, designed for both disturbed and undisturbed soil monoliths.

Available in diameters of 300, 500, 800, or 1130 mm and lengths of 300–900 mm, RTG lysimeters are easy to install and operate without special tools or trained personnel.

• Weighable Design – Stainless steel vessel with high-precision weighing system (0.01 mm resolution)
• Integrated Sensors – Soil hydrological sensors including tensiometers, water content probes, temperature probes, and suction probes
• Leachate Collection – Tipping trough, free outlet, or controlled boundary conditions with automatic pumping options
• Advanced Tensiometer – Patented Full Range Tensiometer (up to 1500 kPa) for soil water tension and temperature monitoring, reliable even in saline or arid soils
• Flexible Expansion – Optional pore water harvesting and UGT weather station modules
• Boundary Condition Control – Lower Boundary Condition (LBC) system for simulating natural or experimental groundwater and drainage scenarios

Applications:

• Water Balance Studies – Direct evapotranspiration measurement through weight changes and precipitation data
• Soil Dynamics Research – High-resolution tension and moisture monitoring for ecosystem and climate studies
